Configuring System Messages
DWT provides various system messages during all parts of runtime. Some of these messages are errors which are useful for debugging/reporting purposes, such as indicating that the Dynamsoft Service has not been installed on end user’s system. Other messages provide information directly to the end user, such as labelling the image source selection prompt overlay (scanner selection).
These system messages are configurable. Notably, we recommend changing these system messages for the purposes of translating the default English messages to other localizations.
Configuring the CustomizableDisplayInfo Object
Most system messages are configurable with the Dynamsoft.DWT.CustomizableDisplayInfo object, which may be modified within the dynamsoft.webtwain.config.js configuration resource file. This resource file has a commented-out definition of the object, which contains the default system messages. To alter the default messages, simply un-comment the object and change its properties:
Dynamsoft.DWT.CustomizableDisplayInfo = {
errorMessages: {
// launch
ERR_MODULE_NOT_INSTALLED:
"Error: The Dynamic Web TWAIN module is not installed.",
ERR_BROWSER_NOT_SUPPORT: "Error: This browser is currently not supported.",
ERR_CreateID_MustNotInContainers:
"Error: Duplicate ID detected for creating Dynamic Web TWAIN objects, please check and modify.",
ERR_CreateID_NotContainer:
"Error: The ID of the DIV for creating the new DWT object is invalid.",
ERR_DWT_NOT_DOWNLOADED:
"Error: Failed to download the Dynamic Web TWAIN module.",
// image view
limitReachedForZoomIn: "Error: You have reached the limit for zooming in",
limitReachedForZoomOut: "Error: You have reached the limit for zooming out",
// image editor
insufficientParas: "Error: Not enough parameters.",
invalidAngle: "Error: The angle you entered is invalid.",
invalidHeightOrWidth: "Error: The height or width you entered is invalid.",
imageNotChanged: "Error: You have not changed the current image.",
},
// launch
generalMessages: {
checkingDWTVersion: "Checking WebTwain version ...",
updatingDService: "Dynamsoft Service is updating ...",
downloadingDWTModule: "Downloading the Dynamic Web TWAIN module.",
refreshNeeded: "Please REFRESH your browser.",
downloadNeeded: "Please download and install the Dynamic Web TWAIN.",
DWTmoduleLoaded: "The Dynamic Web TWAIN module is loaded.",
},
customProgressText: {
// html5 event
upload: "uploading...",
download: "Downloading...",
load: "Loading...",
decode: "Decoding...",
decodeTIFF: "Decoding tiff...",
decodePDF: "Decoding pdf...",
encode: "Encoding...",
encodeTIFF: "Encoding tiff...",
encodePDF: "Encoding pdf...",
// image control
canvasLoading: "Loading ...",
},
// image editor
buttons: {
titles: {
previous: "Previous Image",
next: "Next Image",
print: "Print Image",
scan: "Acquire new Image(s)",
load: "Load local Image(s)",
rotateleft: "Rotate Left",
rotate: "Rotate",
rotateright: "Rotate Right",
deskew: "Deskew",
crop: "Crop Selected Area",
cut: "Cut Selected Area",
changeimagesize: "Change Image Size",
flip: "Flip Image",
mirror: "Mirror Image",
zoomin: "Zoom In",
originalsize: "Show Original Size",
zoomout: "Zoom Out",
stretch: "Stretch Mode",
fit: "Fit Window",
fitw: "Fit Horizontally",
fith: "Fit Vertically",
hand: "Hand Mode",
rectselect: "Select Mode",
zoom: "Click to Zoom In",
restore: "Restore Orginal Image",
save: "Save Changes",
close: "Close the Editor",
removeall: "Remove All Images",
removeselected: "Remove All Selected Images",
},
},
dialogText: {
dlgRotateAnyAngle: [
"Angle :",
"Interpolation:",
"Keep size",
" OK ",
"Cancel",
],
dlgChangeImageSize: [
"New Height :",
"New Width :",
"Interpolation method:",
" OK ",
"Cancel",
],
saveChangedImage: [
"You have changed the image, do you want to keep the change(s)?",
" Yes ",
" No ",
],
selectSource: [
"Select Source:",
"Select",
"Cancel",
"There is no source available!",
],
},
};
The messages are grouped into categories:
errorMessagesmainly contains loading/instantiation error messages.customProgressTextare loading messages that appear during processes such as data IO and image encoding/decoding.buttonsViewereditor/DDV element tooltip labels?dialogTextprovides confirmation messages and the source selection message to the user.
Configuring the _show_install_dialog() Function

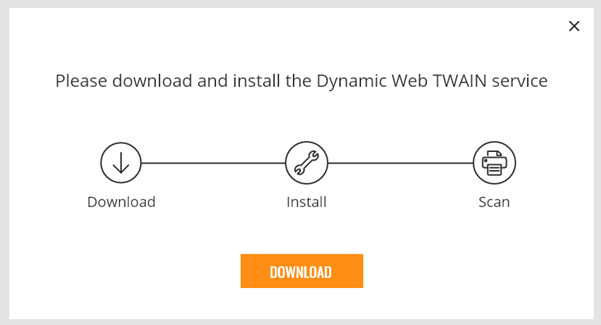

The Dynamsoft._show_install_dialog() function defined in the dynamsoft.webtwain.install.js resource file generates the Dynamsoft Service installation dialog box, pictured here:
As the dialog box contains instructions for installing the Dynamsoft Service, consider altering the message strings for localization purposes. Generally we discourage directly modifying the resource files, but this dialogue function contains styling and messaging which may be tailored the web application itself. Try not to alter the platform detection logic too greatly, as this may interfere with the Dynamsoft Service installation procedure. Please contact the support team for any further questions.
