Configure the UI Elements

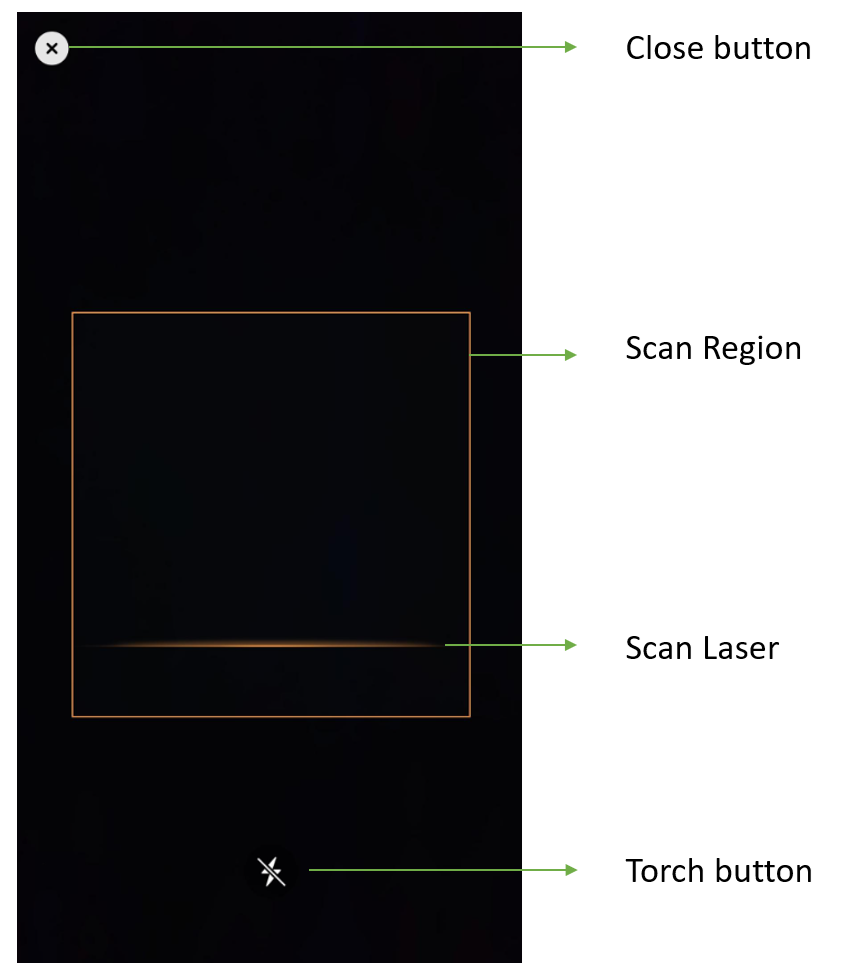

BarcodeScanner provides a set of UI elements that can be easily customized.

• Close button: Stop barcode scanning and go back to the previous activity.
• Scan Region: Set a region of interest so that the algorithm focus on this region only. It can sharpenly improve the processing speed. For some special barcode types like DotCode the scan region improves the read-rate as well.
• Torch button: A clickable button that can turn on/off the torch.
• Scan Laser: A line that moving up and down. Its moving area is limited in the scan region.

• Java
• Kotlin

1. BarcodeScannerConfig config = new BarcodeScannerConfig();
   // Margin left 15%, margin top 30%, margin right 85%, margin bottom 70%
   config.setScanRegion(new DSRect(0.15f, 0.25f, 0.85f, 0.65f, true));
   config.setTorchButtonVisible(true);
   config.setCloseButtonVisible(true);
   config.setScanLaserVisible(true);
   config.setCameraToggleButtonVisible(true);


2. val config = BarcodeScannerConfig().apply {
      // Margin left 15%, margin top 30%, margin right 85%, margin bottom 70%
      scanRegion = DSRect(0.15f, 0.3f, 0.85f, 0.7f, true)
      torchButtonVisible = true
      closeButtonVisible = true
      scanLaserVisible = true
      cameraToggleButtonVisible = true
   }


Related APIs

• setScanRegion
• setTorchButtonVisible
• setScanLaserVisible
• setCloseButtonVisible
• setCameraToggleButtonVisible
