Build a React Native QR Code Scanner using Vision Camera

In the previous series articles, we’ve created a react-native-vision-camera frame processor plugin of Dynamsoft Barcode Reader to scan barcodes. In this article, we are going to build a QR Code scanner using this plugin to better illustrate how to use it.

A preview of the final result:

QR Code Scanner

The app consists of several pages. On the home page, users can tap the button to navigate to the scanner page. When a QR Code is found, the app will highlight the code and display the decoded text above the code. If continuous scan is disabled, the app will return to the home page with the result immediately. Users can tap the code for further actions like checking its details, opening the link, and copying the text to the clipboard.

This article is Part 3 in a 3-Part Series.

Alternatives to Vision Camera:

Other React Native Vision Camera Frame Processor Plugins

Dynamsoft Barcode Reader

Building a React Native QR Code Scanner

New project

$ npx react-native init QRCodeScanner

If you need to enable TypeScript1:

$ npx react-native init QRCodeScanner --template react-native-template-typescript

Update project files

We need to modify several project files.

Add camera permission

For Android, add the following to android\app\src\main\AndroidManifest.xml:

<uses-permission android:name="android.permission.CAMERA" />

For iOS add the following to ios\QRCodeScanner\Info.plist:

<key>NSCameraUsageDescription</key>
<string>For barcode scanning</string>

Install dependencies

Install the following packages used in this article:

$ npm install vision-camera-dynamsoft-barcode-reader react-native-worklets-core react-native-vision-camera react-native-svg @react-native-clipboard/clipboard @react-navigation/native @react-navigation/native-stack @alessiocancian/react-native-actionsheet react-native-screens react-native-safe-area-context

Extra steps are needed:

  1. Update the babel.config.js file:

    module.exports = {
  presets: ['module:metro-react-native-babel-preset'],
+ plugins: [['react-native-worklets-core/plugin']],
};
  2. For iOS, run pod install in the ios folder.

  3. Run the project using the following commands:

    $ npx react-native run-android # for Android
$ npx react-native run-ios     # for iOS

Show camera and decode

Open App.tsx and replace its content with the following:

import * as React from 'react';
import { SafeAreaView, StyleSheet, Text } from 'react-native';
import { Camera, CameraDevice, getCameraFormat, runAtTargetFps, useCameraDevice, useCameraDevices, useCameraFormat, useFrameProcessor } from 'react-native-vision-camera';
import { DBRConfig, decode, TextResult } from 'vision-camera-dynamsoft-barcode-reader';
import { useSharedValue, Worklets } from 'react-native-worklets-core';

export default function App() {
  const [hasPermission, setHasPermission] = React.useState(false);
  const [barcodeResults, setBarcodeResults] = React.useState([] as TextResult[]);
  const cameraFormat = useCameraFormat(backCam, [
    { videoResolution: { width: 1280, height: 720 } },
    { fps: 60 }
  ])
  const backCam = useCameraDevice('back');
  const onBarcodeScanned = (results:TextResult[]) =>{
    setBarcodeResults(results);
  }
  const onBarcodeScannedJS = Worklets.createRunInJsFn(onBarcodeScanned);
  const frameProcessor = useFrameProcessor((frame) => {
    'worklet'
    runAtTargetFps(5, () => {
      'worklet'

      const config:DBRConfig = {};
      config.license = "LICENSE-KEY";
      config.template="{\"ImageParameter\":{\"BarcodeFormatIds\":[\"BF_QR_CODE\"],\"Description\":\"\",\"Name\":\"Settings\"},\"Version\":\"3.0\"}";
      const results = decode(frame,config)
      if (results) {
        onBarcodeScannedJS(results);
      }
    })
  }, [])

  React.useEffect(() => {
    (async () => {
      const status = await Camera.requestCameraPermission();
      setHasPermission(status === 'granted');
    })();
  }, []);

  return (
    <SafeAreaView style={styles.container}>
      {backCam != null &&
      hasPermission && (
        <>
          <Camera
            style={StyleSheet.absoluteFill}
            device={backCam}
            isActive={isActive}
            format={cameraFormat}
            frameProcessor={frameProcessor}
            pixelFormat="yuv"
          />
          {barcodeResults.map((barcode, idx) => (
            <Text key={idx} style={styles.barcodeText}>
              {barcode.barcodeFormat +": "+ barcode.barcodeText}
            </Text>
          ))}
        </>
      )}
    </SafeAreaView>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
  },
  barcodeText: {
    fontSize: 20,
    color: 'white',
    fontWeight: 'bold',
  },
});

The vision camera frame processor plugin of Dynamsoft Barcode Reader is used to read barcodes from the camera. A template is specified to decode QR codes only (You can learn more about how to update Dynamsoft Barcode Reader runtime settings here).

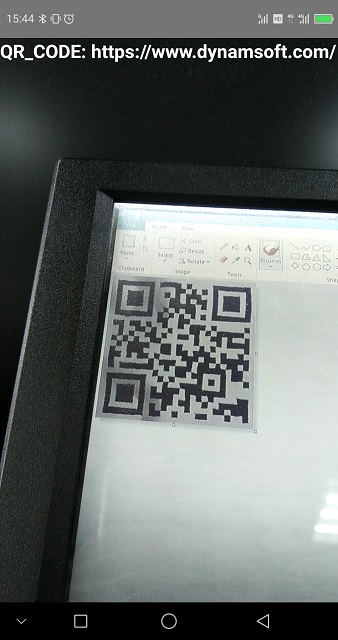

Let’s run it to have a test. The QR code results will be displayed in top-left text components.

Minimum Camera

Show QR Code overlays

The next step is to draw QR Code overlays above the camera preview. In a previous article, we demonstrated how to do this using SVG in a web app. In this article, we are going to use SVG, as well.

The react-native-svg library is used to provide SVG support to React Native on iOS and Android.

Polygon is used to cover QR Codes and Text is used to show the results above QR Codes.

We need to set the viewBox attribute so that the SVG content will be correctly scaled to match the screen. Since the natural camera sensor orientation of Android is landscape, the frame may be rotated for preview while the frame we get is not rotated. We need to switch the width and height if the device is portrait.2

Here is the code:

const getPointsData = (tr:TextResult) => {
  var pointsData = tr.x1 + "," + tr.y1 + " ";
  pointsData = pointsData+tr.x2 + "," + tr.y2 +" ";
  pointsData = pointsData+tr.x3 + "," + tr.y3 +" ";
  pointsData = pointsData+tr.x4 + "," + tr.y4;
  return pointsData;
}

const getViewBox = () => {
  const frameSize = getFrameSize();
  const viewBox = "0 0 "+frameSize[0]+" "+frameSize[1];
  return viewBox;
}

const getFrameSize = ():number[] => {
  let width:number, height:number;
  if (Platform.OS === 'android') {
    if (frameWidth>frameHeight && Dimensions.get('window').width>Dimensions.get('window').height){
      width = frameWidth;
      height = frameHeight;
    }else {
      console.log("Has rotation");
      width = frameHeight;
      height = frameWidth;
    }
  } else {
    width = frameWidth;
    height = frameHeight;
  }
  return [width, height];
}

return (
  //...
    <Svg style={StyleSheet.absoluteFill} viewBox={getViewBox()}>
      {barcodeResults.map((barcode, idx) => (
        <Polygon key={"poly-"+idx}
        points={getPointsData(barcode)}
        fill="lime"
        stroke="green"
        opacity="0.5"
        strokeWidth="1"
        />
      ))}
       {barcodeResults.map((barcode, idx) => (
        <SVGText key={"text-"+idx}
          fill="white"
          stroke="purple"
          fontSize={getFrameSize()[0]/400*20}
          fontWeight="bold"
          x={barcode.x1}
          y={barcode.y1}
        >
          {barcode.barcodeText}
        </SVGText>
      ))}
    </Svg>
  //...
)

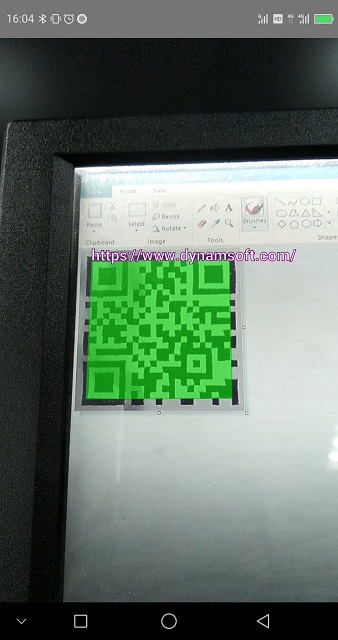

Barcode overlays

Set up a scan region

We can set up a scan region (or recognition area) to guide the user to aim the camera to the QR code. This can also improve the decoding speed.

Here, we use react-native-svg to draw a rectangle and update Dynamsoft Barcode Reader’s runtime settings to decode a specified region.

Added JSX in SVG:

<Rect
  x={0.1*getFrameSize()[0]}
  y={0.2*getFrameSize()[1]}
  width={0.8*getFrameSize()[0]}
  height={0.45*getFrameSize()[1]}
  strokeWidth="2"
  stroke="red"
/>

In frameProcessor, update the template to specify a region:

const frameProcessor = useFrameProcessor((frame) => {
  let settings;
  if (config.template){
    settings = JSON.parse(config.template);
  }else {
    const template =
    `{
      "ImageParameter": {
        "Name": "Settings"
      },
      "Version": "3.0"
    }`;
    settings = JSON.parse(template);
  }
  let left = 10;
  let right = 90;
  let top = 20;
  let bottom = 65;
  if (config.rotateImage == false && Platform.OS === 'android') {
    console.log("android with rotation disabled");
    left = 20;
    right = 65;
    top = 10;
    bottom = 90;
  }
  settings["ImageParameter"]["RegionDefinitionNameArray"] = ["Settings"];
  settings["RegionDefinition"] = {
                                  "Left": left,
                                  "Right": right,
                                  "Top": top,
                                  "Bottom": bottom,
                                  "MeasuredByPercentage": 1,
                                  "Name": "Settings",
                                };
  config.template = JSON.stringify(settings);
}

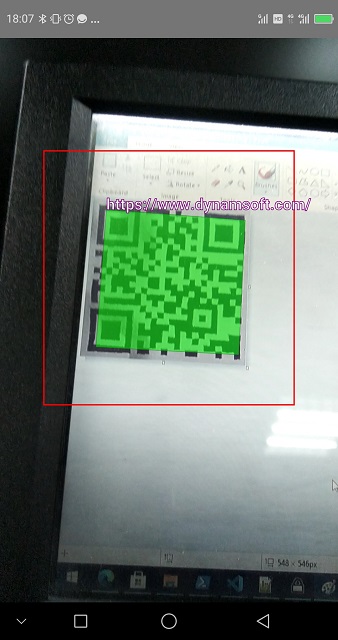

Here is a screenshot of the result:

Scan region

Use React Navigation

To demonstrate how to use the camera component in a multi-page app, let’s create several pages and manage them using React Navigation.

  1. Create a Screens folder with three files.

     Screens\Home.js
 Screens\Info.js
 Screens\BarcodeScanner.tsx

    The previous code we write is moved to BarcodeScanner.tsx.

    The Home page shows a button to navigate to the scanner page and the Info page shows the details of the code.

    There is a continuous scan option. If it is disabled, the program will return to the Home page with the QR code results.

  2. In the App.tsx file, use the navigator.

     import * as React from 'react';
 import {StyleSheet, View } from 'react-native';
 import { NavigationContainer } from '@react-navigation/native';
 import { createNativeStackNavigator } from '@react-navigation/native-stack';
 import BarcodeScanner from './Screens/BarcodeScanner';
 import Home from './Screens/Home';
 import Info from './Screens/Info';
 import Test from './Screens/test';

 const Root = createNativeStackNavigator()

 export default function App() {

   return (
     <NavigationContainer>
       <Root.Navigator>
         <Root.Group>
           <Root.Screen name="Home" component={Home} />
           <Root.Screen name="Info" component={Info} />
         </Root.Group>
         <Root.Group screenOptions={{ headerShown: false }}>
           <Root.Screen name="BarcodeScanner" component={BarcodeScanner} />
         </Root.Group>
       </Root.Navigator>
     </NavigationContainer>
   );
 }

 const styles = StyleSheet.create({
   container: {
     flex:1,
     alignItems: 'center',
     justifyContent: 'center',
   },
 });

Add post-scan actions

After the QR code is scanned, we can show an action sheet to let the users open the link, copy the text or view its details when they touch the code.

Define an actionsheet:

<ActionSheet
  ref={actionSheetRef}
  title={'Select your action'}
  options={['View details', 'Open the link', 'Copy the text', 'Cancel']}
  cancelButtonIndex={3}
  onPress={async (index) => {
    if (pressedResult){
      if (index == 0){
        navigation.navigate("Info", {"barcode":pressedResult});
      } else if (index == 1) {
        const url = pressedResult.barcodeText;
        const supported = await Linking.canOpenURL(url);
        if (supported) {
          await Linking.openURL(url);
        } else {
          Alert.alert(`Don't know how to open this URL: ${url}`);
        }
      } else if (index == 2) {
        Clipboard.setString(pressedResult.barcodeText);
      }
    }
  }}
/>

Add an onPress event to the code overlay polygon to call the action sheet:

{barcodeResults.map((barcode, idx) => (
  <Polygon key={"poly-"+idx}
  points={getPointsData(barcode)}
  fill="lime"
  stroke="green"
  opacity="0.5"
  strokeWidth="1"
  onPress={() => {
    pressedResult = barcode;
    actionSheetRef.current.show();
  }}
  />
))}

All right, the React Native QR Code Scanner is now completed.

Source Code

You can check out the source code for more details. The example has more options like torch control, front and back camera switch, and resolution setting.

https://github.com/tony-xlh/react-native-barcode-overlays
